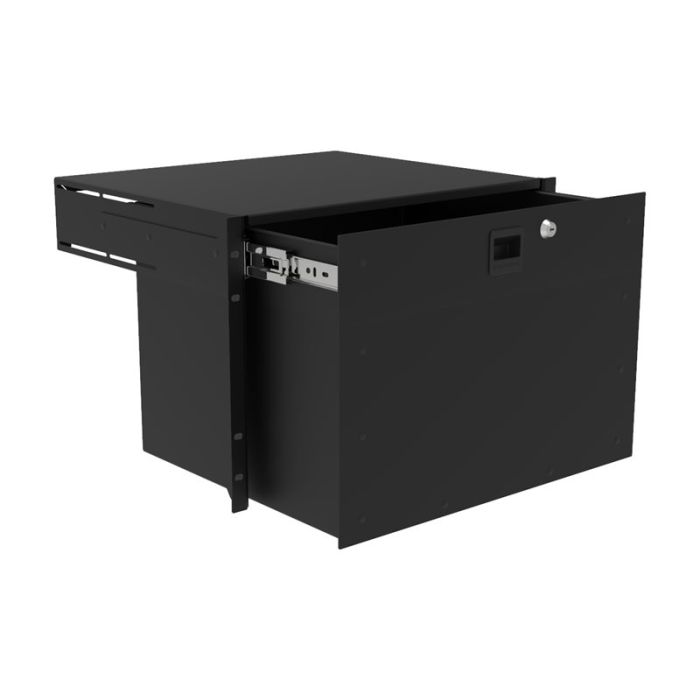

7U Lockable Lightweight Aluminum Rack Drawer – 14" Deep
Part No
R2295-7UK
The Penn Elcom R2295-7UK is a lockable, lightweight aluminum 7U 19" rack drawer with a space-saving flat front panel, 14.8" (375mm) internal depth, and a slam latch plus key lock that keeps it shut in transit and secure when mounted.
Up to 40% lighter than the equivalent steel drawer for the same load rating, it is well suited to touring and mobile racks where every kilo counts. The R2295-7UK runs on heavy-duty ball-bearing slides for smooth, repeatable full extension, with reinforced 0.079" (2mm) rack-mounting ears that keep the fixing points solid through repeated transport and load cycles. The reversible rear support brackets (R2292-RSB-KIT) are included as standard.
Specifications:
- Rack size: 7U (19" standard, EIA-310 compatible)
- External dimensions (W × D × H): 19.0" × 15.3" × 12.2" (482.6mm x 387.5mm x 310.6mm)
- Internal dimensions (W × D × H): 16.1" × 14.8" × 11.7" (409mm x 375mm x 297mm)
- Recommended load capacity: 84lb (38kg)
- Slide-out extension: 13.8" (350mm) runner travel on heavy-duty ball-bearing slides
- Product weight: 15lb (7.00kg)
- Material: 0.059" (1.5mm) aluminum (steel rack ears, reinforced 0.079" (2mm))
- Finish: Black powder coated
- Front panel: Flat (space-saving)
- Lock / Latch: Slam latch + key lock (2 keys supplied)
- Cable access: Not fitted
- Country of origin: United Kingdom
- R2292-RSB-KIT — reversible rear support brackets (included as standard)
- 3232-SLAM-LOCK — replacement slam latch (0.079" (2mm) panels)
- R1292-KEY — replacement barrel lock + 2 keys
| 3D Model | View 3D Drawing |
|---|---|
| Data Sheet | More information |
| Load Capacity | 38kg / 83.8lbs |
| Material | Aluminum |
| Size (U) | 7U |
| Weight | 7kg |
| Depth | 38.5cm / 15 3/16" |
| Finish | Black |
