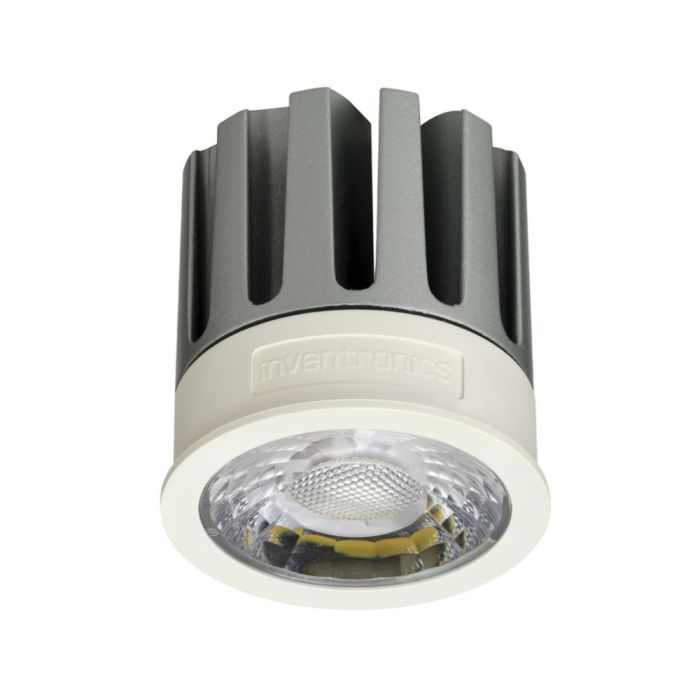

LED Pl-cn50-cob-1400-927-24d-G3 Prevaled Coin Cob 50 6937186151056 (MR16 alternative)

New Generation 3 PrevaLED COINS COB LED modules - Brilliant light, compact design
PL COIN 50 COB DC G3 - Spot-, Down- and Wallmount Light Engines and Module

Priced per unit; available in any quantity. For best LED driver to match your requirements please see listing below.
Where the output current of the driveer is not a fixed value but a range, specific steps have to be taken to setup a fixed 350mA output current. Please get in touch for more information.

LEDOTE13350PC (switched or mains dimmable)
LEDOTE18350PC (switched or mains dimmable)
LEDOTFIT14350CSPC (switched or mains dimmable)
LEDOTDALI20500NFC (DALI2 NFC)
LEDOTDALI2151A0LT2 (DALI2)

Parallel connection of several modules on one LED driver is not allowed.
Series connection of several modules on one LED driver is not recommended.

Accessories available (Suitable only for PrevaLED 50mm coins):
LEDCOB50G2BC - Black Cover
LEDCN50RR - White Round Ring

Product family benefits
Compact form factor compatible with conventional MR16 lamps
Precise optical control and free from multi-shadow issue
Replaceable front cover to maximize optics flexibility and future extension

Product family features
Color consistency < 2 SDCM (15D version <3 SDCM)
TM30 compliant
High flux output up to 1500 lm
Beam angle: 15°, 24°, 40°, 60°
Type of protection: IP20

Areas of application
Retail, shop, restaurant, hospitality
High-end residential
Suitable for indoor applications
Connecting multiple modules in parallel on one LED driver is not permitted
Connecting multiple modules in series on one LED driver is not recommended
Do not use in sealed fixtures
Avoid covering the lens with dust or any object

EAN: 6937186151056

Electrical data
Nominal current: 0.35 A
Type of current: DC
On-mode power: 11.7 W
Energy consumption in on-mode: 11.7 kWh/1000h
Maximum forward voltage: 36 V

Photometrical data
Luminous efficacy: 108 lm/W
Peak luminous intensity: 5318
Correlated color temperature CCT: 2700 K
Colour consistency (McAdam ellipses): 2
Useful luminous flux (Φuse): 1170 lm
Color rendering index Ra: 90

Light technical data
Beam angle: 24 °
Starting time: 0 s
Warm-up time (60 %): 0 s

LED module information
Number of LEDs per module: 1

Dimensions & weight
Diameter: 50.0 mm
Product weight: 90.00 g
Width: 50 mm
Length: 50 mm
Height: 55 mm

Colors & materials
Heatsink color: Grey

Temperatures & operating conditions
Performance temp. acc. to IEC 62717: 70 °C
Maximum temperature at tc test point: 95 °C

Lifespan
Lifespan: 50000 h
Number of switching cycles: › 15000
Lumen maintenance factor LMF: 96

Additional product data
Lighting technology used: LED

Capabilities
Dimmable: Yes

Certificates & standards
Standards: EC 62778 / IEC 60598-1 / EN 62031 / EN 55015 / EN 61547 / IEC 61000-3-2 / IEC 61000-3-3
Type of protection: IP20
Energy efficiency class: F

Logistical data
Commodity code: 85395100000
