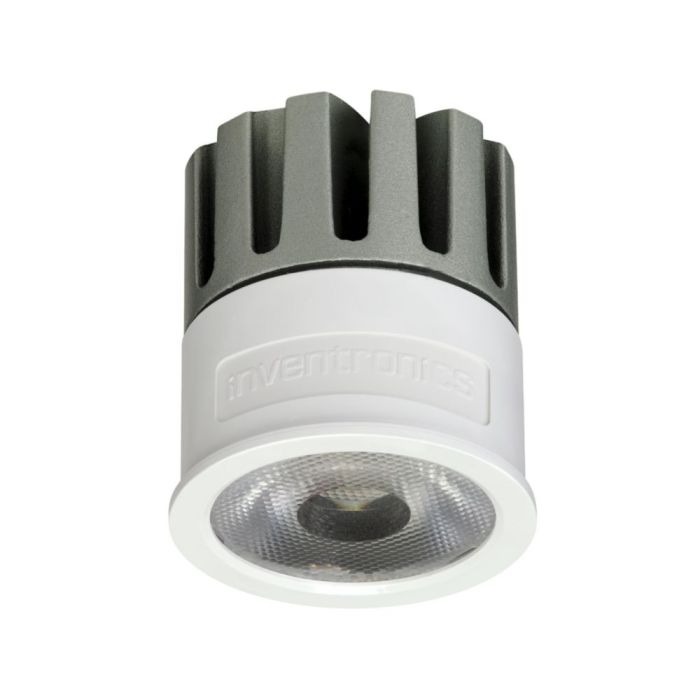

LED Pl-cn35-cob-600-927-36d-G3 Prevaled Coin Cob 35 6937186150936 (MR11 alternative)

New Generation 3 PrevaLED COINS COB LED modules - Brilliant light, compact design
PL COIN 35 COB DC G3 - Spot-, Down- and Wallmount Light Engines and Module

Priced per unit; available in any quantity. For best LED driver to match your requirements please see listing below.
Where the output current of the driver is not a fixed value but a range, specific steps have to be taken to setup a fixed 180mA output current. Please get in touch for more information.

LEDOTFIT7180CSPC (Switched, non dimmable)
LEDOTDALI10700NFCI (DALI2 NFC)

Accessories available (Suitable only for PrevaLED 35mm coins):

LEDCN35RR - White Round Ring

Product family benefits
Compact form factor compatible with conventional MR11 lamps
Precise optical control and free from multi-shadow issue
Replaceable front cover to maximize optics flexibility and future extension

Product family features
Color consistency in 3 SDCM
TM30 compliant
Type of protection: IP20
High flux output up to 680 lm
Beam angle: 24°, 36°

Areas of application
Retail, shop, restaurant, hospitality
High-end residential
Suitable for indoor applications
Connecting multiple modules in parallel on one LED driver is not permitted
Connecting multiple modules in series on one LED driver is not recommended
Do not use in sealed fixtures
Avoid covering the lens with dust or any object

EAN: 6937186150936

Electrical data
Nominal voltage: 34.00 V
Nominal current: 0.18 A
Type of current: DC
On-mode power: 6.1 W
Energy consumption in on-mode: 6.1 kWh/1000h
Maximum forward voltage: 38 V

Photometrical data
Luminous efficacy: 100 lm/W
Peak luminous intensity: 1417
Correlated color temperature: CCT 2700 K
Colour consistency (McAdam ellipses): 3
Useful luminous flux (Φuse): 580 lm
Color rendering index Ra: 90

Light technical data
Beam angle: 36 °
Starting time: 0 s
Warm-up time (60 %): 0 s

LED module information
Number of LEDs per module: 1

Dimensions & weight
Diameter: 34.0 mm
Product weight: 38.00 g
Width: 34 mm
Length: 34 mm
Height: 40.5

Colors & materials
Heatsink color: Grey

Temperatures & operating conditions
Performance temp. acc. to IEC 62717: 75 °C
Maximum temperature at tc test point: 95 °C

Lifespan
Lifespan: 50000 h
Number of switching cycles: › 15000
Lumen maintenance factor LMF: 96

Additional product data
Lighting technology used: LED

Capabilities
Dimmable: Yes

Certificates & standards
Standards: EC 62778 / IEC 60598-1 / EN 62031 / EN 55015 / EN 61547 / IEC 61000-3-2 / IEC 61000-3-3
Type of protection: IP20
Energy efficiency class: F

Logistical data
Commodity code: 85395100000
