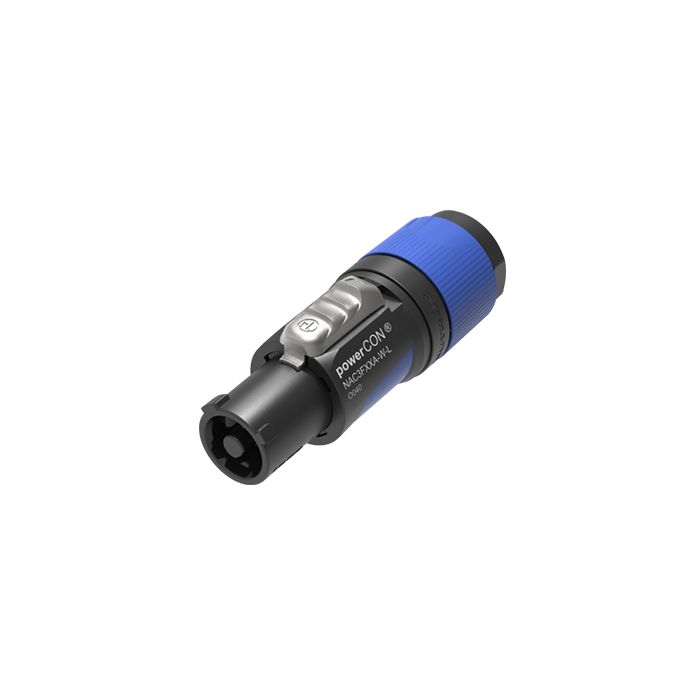

PowerCON XX Mains Input 20A 3 Pin Connector NAC3FXXA-W-L
Neutrik
Part No
CONAC3FXXAWL
£9.36
£7.80
In stock
Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 10 - 16 mm.
The powerCON FXXA is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
Features & Benefits:
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1 UL US 498 / UL CA 498
- Ergonomic design with slip-proof two-component molded housing
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Superior NEUTRIK quality standard, extremely robust and reliable
- Easy and reliable twist lock system
- Improved kink protection by two-component bushing
Technical Information
Technical Information
Electrical
Contact resistance: ≤ 2 mΩ
Dielectric strength: > 3 kVac (after mating cycles)
Insulation resistance: > 10 GΩ (initially)
Number of electrical contacts: 2 + PE
Rating Europe: EN 60320-1: 16 A 250 V AC, CBC
Rating USA / Canada: cUL 60320-1: 20 A 127 V AC, UL USA 498: 20 A 127 V AC, UL CA 498: 20 A 127 V AC
Mechanical
Cable O.D.: 10 – 16 mm
Lifetime: Typically 5’000 mating cycles
Wiresize (mm²): 1.5 – 2.5 mm²
Wiresize (AWG): 14 – 12 AWG
Locking device: Twist lock
Termination: Screw type terminals
Material
Contact plating: Ag
Contacts: Copper Alloy
Insert: Polyamide (PA6.6)
Locking element: Zinc diecast
Shell: Polyamide (PA6) / TPE
Strain relief: Polyketone
Bushing: Polypropylene / TPE
Environmental
Temperature range: -33 °C to +80 °C
Protection class: IP20
Flammability acc. to UL94: V-0
| Pole | 3 |
|---|---|
| Termination | Screw terminals |
| Weight | 40g |
| Contacts | Copper |
| Cable O.D. | 10mm-16mm |
| Finish | Black/Blue |
