Tiny 3 Pole XLR Male Cable RT3MC-B
REAN
Part No
CORT3MCB

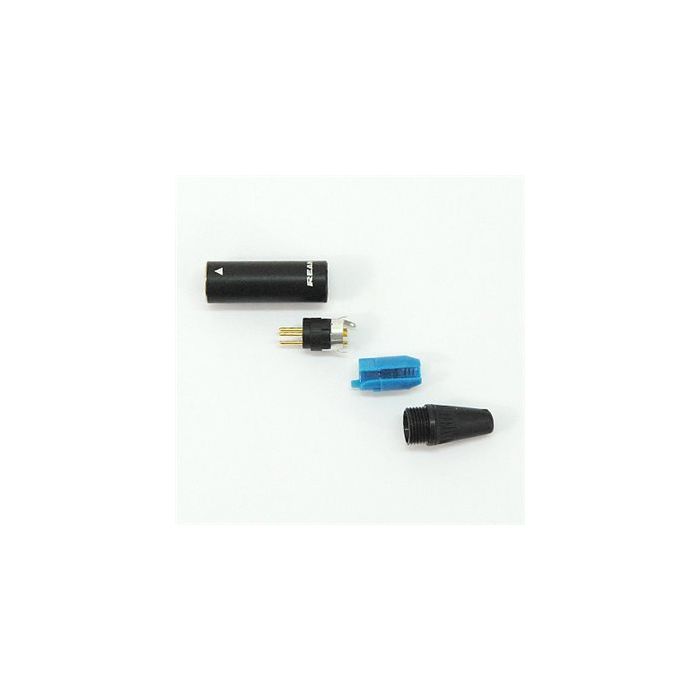

Tiny 3 Pole XLR Male Cable
3 pole TINY xlr male cable connector
Black metal shell
Gold plated contacts
Bulk packaging available RT3MC-B
Technical Specifications:
- Gender: male
- Electrical: Contact resistance < 5 mO (inner)
- Dielectric strength > 0.5 kVdc
- Insulation resistance > 1 GO
- Rated current per contact < 5 A Mechanical
- Cabel O.D. 2.0 - 4.5 mm
- Lifetime > 1000 mating cycles
- Wiresize 0.22 mm
- Wiresize 24 AWG
- Wiring Solder contacts
- Material: Bushing
- ABS Contact plating Au
- Contacts: Brass (CuZn39Pb3)
- Insert Polyamide (PA 6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black
- Strain relief PVC
- Environmental Solderability
- Complies with IEC 68-2-20
- Temperature range: -30 C to +85 C
3 pole TINY xlr male cable connector
Black metal shell
Gold plated contacts
Bulk packaging available RT3MC-B
Technical Specifications:
- Gender: male
- Electrical: Contact resistance < 5 mO (inner)
- Dielectric strength > 0.5 kVdc
- Insulation resistance > 1 GO
- Rated current per contact < 5 A Mechanical
- Cabel O.D. 2.0 - 4.5 mm
- Lifetime > 1000 mating cycles
- Wiresize 0.22 mm
- Wiresize 24 AWG
- Wiring Solder contacts
- Material: Bushing
- ABS Contact plating Au
- Contacts: Brass (CuZn39Pb3)
- Insert Polyamide (PA 6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black
- Strain relief PVC
- Environmental Solderability
- Complies with IEC 68-2-20
- Temperature range: -30 C to +85 C
| Backshell | Black |
|---|---|
| Pole | 3 |
| Shell | Black |
| Weight | 40g |
| Contacts | Gold |
| Gender | Male |
