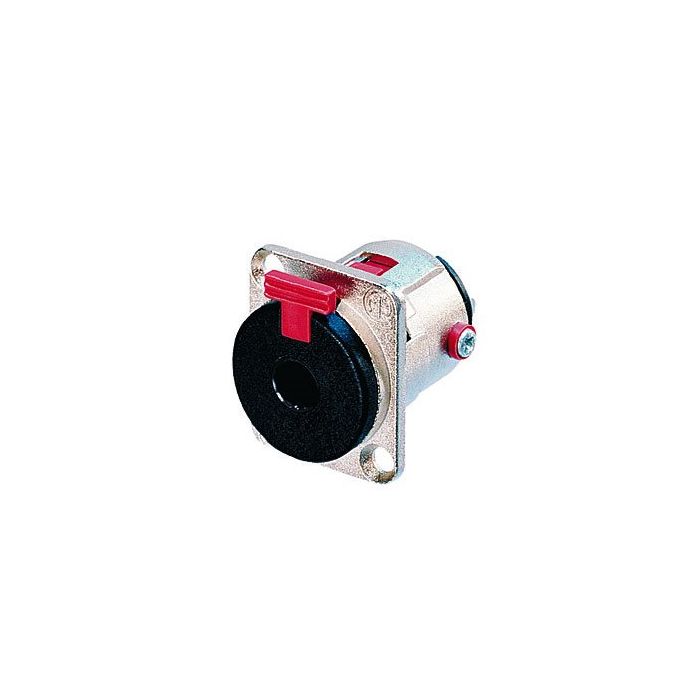

Jack Socket Mono/Stereo Chassis
Part No
CONJ3FP6C
£7.73
£6.44
In stock
Jack Socket Mono/Stereo Chassis
Locking + in phone jack, D-size shell, nickel metal housing and silver contacts
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance.
Technical Specifications:
- Gender: female
- Dielectric strength: 1 kVdc
- Rated current per contact: 10 A
- Wire size: 1 mm
- Wire size: 18 AWG
- Wiring: solder contacts
- Locking device: latch lock
- Mounting direction: front
- Chassis shape: D
- Shell plating: nickel
- Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
Priced per connector: available in any quantity
Packing information: box quantity = 100
| Weight | 40g |
|---|---|
| Finish | Nickel |
