2m 17x16mm White Surface Mounted Aluminium Profile Kit for up to 12mm Led strips

Medium depth extrusion with black base and black diffuser for surface
mounting installation for a wide range of applications including:
joinery/furniture and stage lighting.
Suitable for LED strips not wider than 12mm.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install:
Screw
mounting brackets (most applications require 2 per meter) to the
mounting surface, push the aluminium base into the brackets, install
your led strips inside the profile and finally push-in the black cover.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Need
a more cost effective solution? Try the Osram 8.6W Basic Flex in 2700K
Warm White LEDBF1000SG3827 or 3000K Warm White (slightly cooler)
LEDBF1000SG3830

Included in the 2m KIT:
LEDAL15A2MW - 2M white aluminium extrusion
LEDAL15D2M - 2M diffuse cover
LEDAL15EC - 1x End Cap without hole
LEDAL15ECH - 1x End Cap with hole for cable entry
LEDAL15MB - 4x mounting brackets

LEDAL15M2 - 2M anodized version (grey)
LEDAL15M2B - 2M Black version
Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 12 mm

Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Additional information:
Height: 15.6 mm
Length: 2000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Internal): 12.4 mm
Width (Base): 16.9 mm
Base thickness: 0.7 mm
Cover material: PC

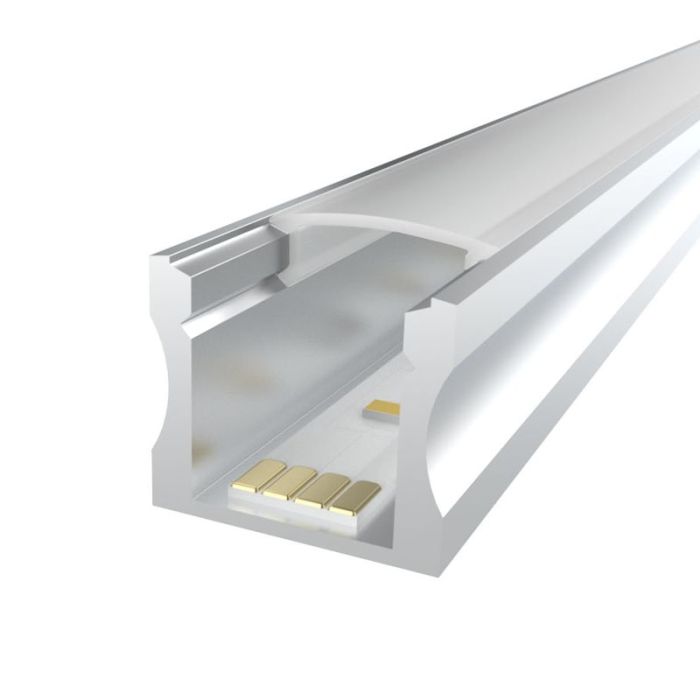

LED shown in images for illustration purposes and is not included in profile
