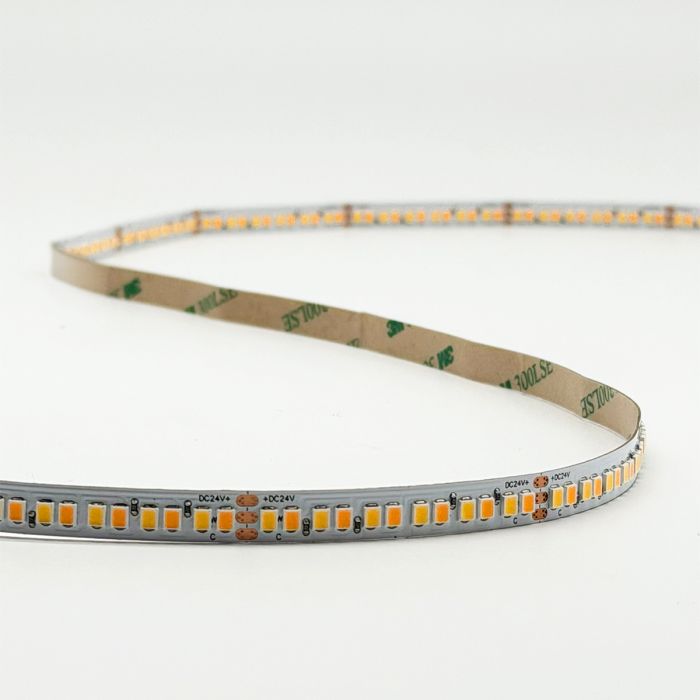

5m reel of Tunable White (CCT) LED strip 2200-3500K, High Density 240LEDs/m, 16.8W/m, 24V, IP20
Part No
LEDPL-TW-922935-16W
High-density Tunable White (Dynamic White) LED strip with 120 warm white and 120 cold white LED chips per metre, adjustable across a 2200K to 3500K range. Power consumption 16.8W/m. Built with top-quality Epistar/Sanan chips.
Application:
Indirect decorative lighting for displays, shelving, cabinets, corridors, stairs, coves, ceiling coffers etc.
Indirect decorative lighting for displays, shelving, cabinets, corridors, stairs, coves, ceiling coffers etc.
Accessories:
LEDPL-TW-8MM-CONN – Penn PCB connector 150mm
LEDPL-TW-8MM-JOIN – Penn PCB joiner 150mm
LEDPL-TW-8MM-CONN – Penn PCB connector 150mm
LEDPL-TW-8MM-JOIN – Penn PCB joiner 150mm
CA3F20 - 3 core flat cable for low voltage LED applications (0.75 mm²)
CA3F20V2 - 3 core flat cable for low voltage LED applications (0.75 mm²)
Control options:
DALI: Osram/Inventronics 50W 4ch driver LEDOTIDALI50G3CH4, 80W 4ch driver LEDOTIDALI80G3CH4, 160W 2ch driver LEDOTIDALI160G3CH2, 360W* 4ch dimmer LEDITD0P4CNFC
DMX: Osram/Inventronics 4ch dimmer LEDOTDMXRGBW or 5ch dimmer LEDOTDMXDIM5CH or FossLED 4ch dimmer LEDFLDC4YDMX + Wall controller LEDWP4RGBWN
Casambi: Osram/Inventronics 50W 4ch driver LEDOTWI504CHCA, 80W 4ch driver LEDOTWI804CHCA, 160W 2ch driver LEDOTWI1602CHCA, 288W* 5ch dimmer LEDITD0P4CNFC
*with 24V LED strips
Important Notes:
Must be installed with a heat sink for cooling, for example aluminium extrusion designed for LED tape.
3M 300LSE adhesive tape is on the back of the LED tape.
One end of the LED tape comes with a 500mm factory soldered brown/yellow/white cable tail.
The LED strip has a minimum bending radius of 20mm.
Must be installed with a heat sink for cooling, for example aluminium extrusion designed for LED tape.
3M 300LSE adhesive tape is on the back of the LED tape.
One end of the LED tape comes with a 500mm factory soldered brown/yellow/white cable tail.
The LED strip has a minimum bending radius of 20mm.
Technical Specification:
- Part number: LEDPL-TW-922935-16W
- Dimension (LxWxH): 5000mm x 8mm x 1mm
- IP rating: IP20
- Lumen output (± 10%): 640 lm/m in warm white, 800 lm/m in cold white
- LED efficiency @2200K: 76 lm/W
- LED efficiency @3500K: 95 lm/W
- LED type: SMD2835
- LED strip cut-points: every 50mm (12 LED chips)
- LED chips per metre: 240 LED's/m
- PCB type: 3oz white FPC, OSP
- Operating ambient temperature: 20-45°C, storage 20-60°C
- Warranty: 5 years
- Lifespan: L70≥50,000 hours @Tc≤65°C
- Certification: CE, UKCA
- Power consumption (± 10%): 16.8W/m (8.4W warm white, 8.4W cold white)
- Input voltage: 24VDC
- LED current: 3.33A
- LED CCT: 2200-3500K
- CRI: ≥90
- SDCM: 3 step
- Beam angle: 120°
- Dimming method: PWM
- Maximum running length: 5m
| Comprimento do carretel/tira de LED | 5m |
|---|---|
| Tipo de produto | LED strips |
| LEDs por metro | 240 |
| Ângulo do feixe do módulo | 120° |
| Ponto de corte da tira de LED | Every 50mm |
| Índice de reprodução de cor(CRI) | >90 |
| Garantia | 5 yrs |
| Largura da tira de LED | 8mm |
| Tipo de tira de LED | Standard SMD |
| Aparência da cor | Tunable White |
| Temperatura da cor(CCT) | 2200-3500K |
| Tensão de entrada | 24V |
| Saída de luz(lumens por metro) | 500-999lm |
| Consumo de energia | 15-20W/m |
| Tipo de proteção de LED | IP20 |
| Cor clara(designação) | Tunable White |
| Peso | 147g |
